1970 - 1978 Camaro Dash Instrument Cluster Gauges Set, Retro Style (NVU): Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter and Fuel
Image of 1970 - 1978 Dash Instrument Cluster Gauges Set, Retro Style (NVU): Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter and Fuel

Alternative Views:


Our Price: $899.95
Sale Price: $879.95
You save $20.00!


PART NUMBER: DAS-1124
Qty:

Description

1970 - 1978 Camaro Dash Instrument Cluster Gauges Set, Retro Style (NVU): Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter and Fuel

NVU's newest throwback style is here for 70-81 Camaro!

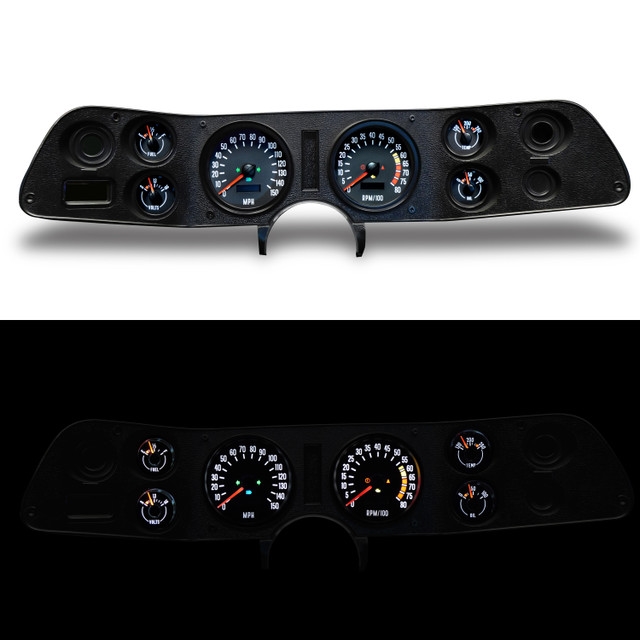

BOLD style inspired by the original! Backlit LED lighting, redlines, packed full of features! Gauge kits for Gen II Camaro fit all dashes from 70-78 fitting in the factory location. NVU’s exclusive CNC cut ABS bracket features full adjustability for to fit those older dashes that may not be so straight anymore! Gauges mount in any location offering you flexibility in where and how you want to monitor the vehicle’s vitals. Choose from several of NVU’s BOLD styles to make that dash stand out in a way that fits your ride’s look.

Instruments can operate on virtually any engine configuration from old-school small blocks to modern LS and LT PCMs all without any boxes, module or drivers!

Performance Series gauges offer great OEM style performance graphics look modern and racy without being over the top, a perfect match for Pro-touring builds or any vehicle that wants an updated look. Bold design with modern pointer, perimeter incandescent lighting, and new ranges to match today's power plants.

NVU's Phoenix technology behind the scenes drives the gauges with easy to read menu functions, fully programmable inputs for speedo and tach make this the most versatile stand-alone gauge kit on the market! Mo additional filters, adapters or driver modules or boxes, NVU instruments run as-is. New temperature and pressure ranges for today's builds.

Speedometer operates from any speed signal OE, PCM (computer), aftermarket or even our GPS antenna.

Looks are only skin deep; all Performance instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit.

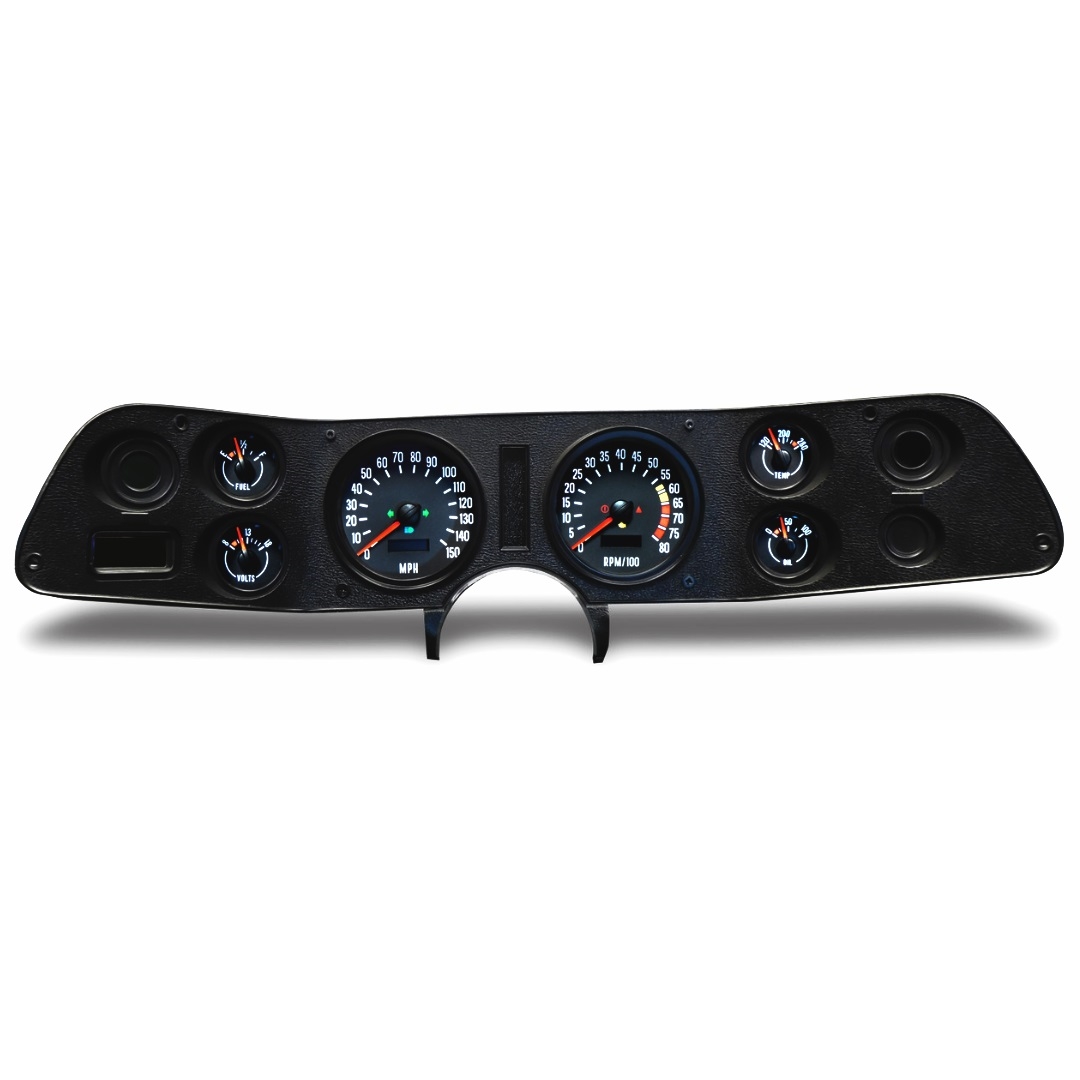

*Dash Bezel is NOT included, shown for visual/presentation purposes. This gauge kit will work with your original dash bezel or a new one (DAS-38) can be purchased separately.

Note: speed sender may be required check your application

PART NUMBER: DAS-1124
Features

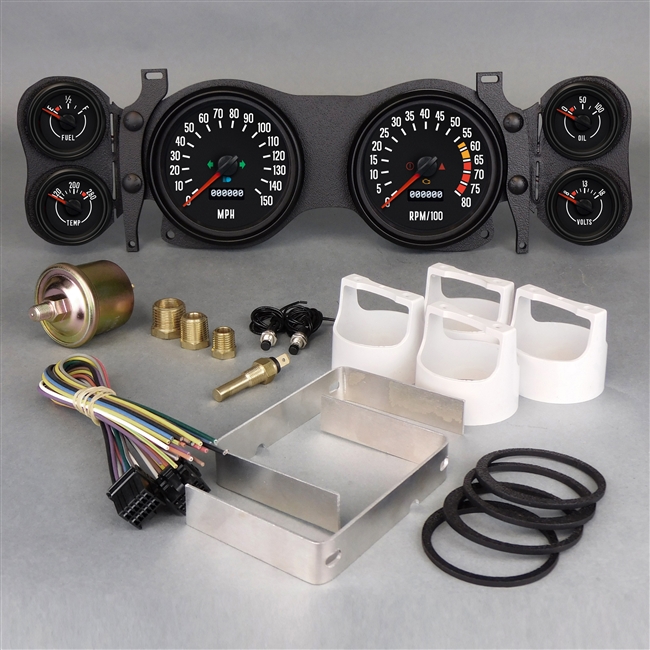

  • Kit includes:
  • Gen II(70-78) Camaro mounting bracket kit
  • Speedometer 4-3/8" 140 MPH with Phoenix features and one additional analog input
  • Tachometer 4-3/8" 8,000 RPM with Phoenix features and 2 additional inputs
  • 2-1/16" Fuel gauge 0-90 Ω (GM factory match)
  • 2-1/16" Voltmeter 10-16V
  • 2-1/16" Oil pressure 0-100 PSI
  • 2-1/16" Water temp 140-280 F
  • Back-clamps
  • 2 ea AMP connectors
  • Water temperature sender Hi Match
  • Oil pressure sender 240-33Ω 1/8-27 NPT
  • Bushing kit 1/8-27 NPT to 1/4", 3/8", 1/2"
  • *SPEED SENDER MAY BE REQUIRED CHECK YOUR APPLICATION
