1970 - 1981 Camaro Suspension Kit, Ridetech StreetGrip, Small Block

1970 - 1981 Camaro Suspension Kit, Ridetech StreetGrip, Small Block Street Grip Kit



Alternative Views:


Our Price: $3,295.00


PART NUMBER: SUS-1131A
Qty:

Description Technical Specs

1970 - 1981 Camaro Suspension Kit, Ridetech StreetGrip, Small Block

Ridetech has spent many hours and miles developing this Street Grip suspension system for your 1970 - 1981 Camaro. This 70 - 81 suspension kit is a direct bolt-on, no modifications required. This system allows you to make you muscle car handle like the newer car you drive daily at a reasonable price. Order your kit today and you will be on an autocross before you know it. This kit will give you the best of both worlds, cruisin and racing. You now can drive your ride to the track in comfort with this new kit featuring dual rate coil springs. The StreetGrip systems Delrin bushings eliminate the deflection and dual-rate springs to allow the vehicle to transition small road irregularities via a compliant spring rate. Adjustable montube shocks are included to offer the ultimate in ride quality and handling performance, while the tall upper ball joints reposition control arm to correct camber for more stability.

Ride Height with 17" Wheels
1970-1981 Camaro 245/45R17 275/40R17 25.125″ 26.25″



Reasons you need this kit:


1.The dual-rate spring coil springs will allow the vehicle to transition small road irregularities via a soft spring rate. When the vehicle compresses the spring far enough (through large bumps or cornering), it transitions to the firmer spring rate to control the bump or body roll. We have worked closely with Hyperco to develop custom dual rates to ensure the best ride possible.
2. Shocks are the brains of your suspension...the single most important influence on ride quality and handling performance. RideTech and Fox have spent years refining the characteristics of these monotube shocks to optimize the performance of YOUR car! 24 Valve Single Adjustable Front and Rear Shocks with Top adjustment knob for easy tuning!
3.Most OEM front swaybars were calibrated with tires and cornering loads that were radically less capable than today. We increase the diameter of the swaybar to minimize the body roll through the corners to optimize the handling performance. Includes Delrin bushing to eliminate stiction and allow the swaybar to move freely.
4. OEM rubber control arm bushings allow too much deflection on the control arms. Poly bushings resist smooth rotation and impose stiction. Delrin bushings eliminate the deflection AND the stiction, leading to a huge improvement in both ride quality and handling.
5.Most OEM front suspension geometry, in addition to being designed over 50 years ago, induced "positive camber" when cornering (loaded tire leans away from the turn). This is a huge compromise in cornering performance and feel. By installing a taller set of ball joints, we reposition the control arms to correct this condition and create a much more stable and enjoyable driving and cornering experience.
6. 50lb weight savings in unsprung weight will improve handling and ride quality. These composite leaf springs also incorporate more torsional strength so any "spring wrap" is diminished. The billet leaf spring eyelets help achieve the desired stance.

Kit Includes:
-Tall Upper Ball Joints
-Delrin Upper & Lower Control Arm Bushings
-Dual-Rate Coil Springs
-Front 5.25” Stroke HQ Series Adjustable Shocks
-Front Sway Bar
-Delrin Sway Bar Bushings
-Composite Rear Leaf Springs
-Delrin Leaf Spring Shackles & Bushings
-Rear 7.55” Stroke HQ Series Adjustable Shocks, Knob on Bottom of Shock for Easy Adjustment


PART NUMBER: SUS-1131A

*Note: This kit will lower your car slightly, but every car is different.

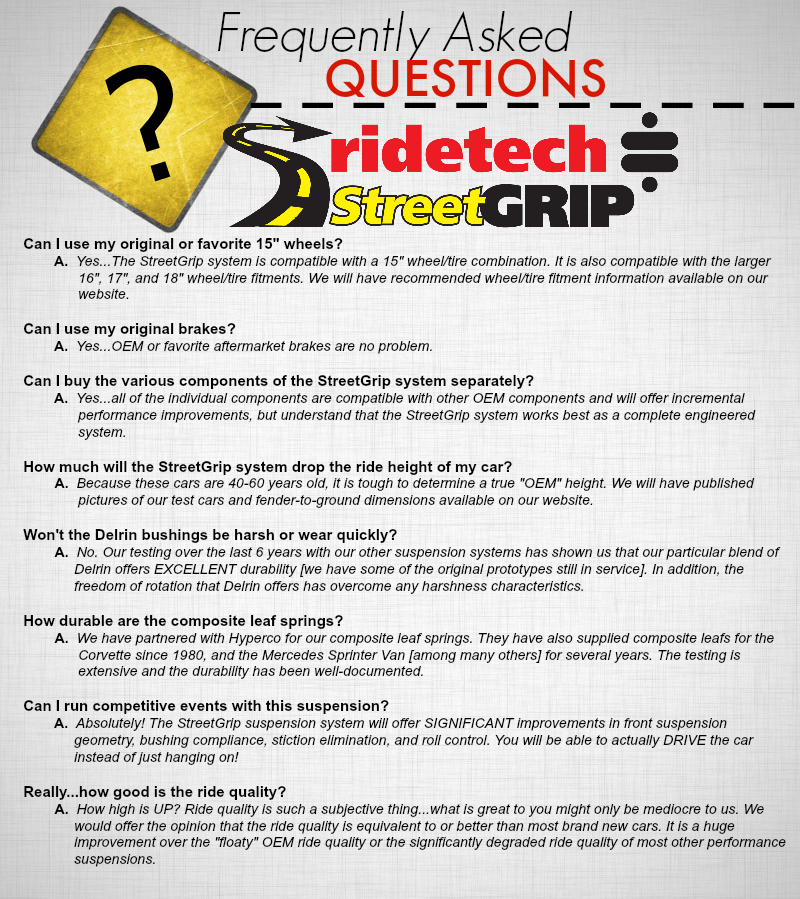

Check this out for more information on this StreetGrip Kit
